Fume CHAMBER™

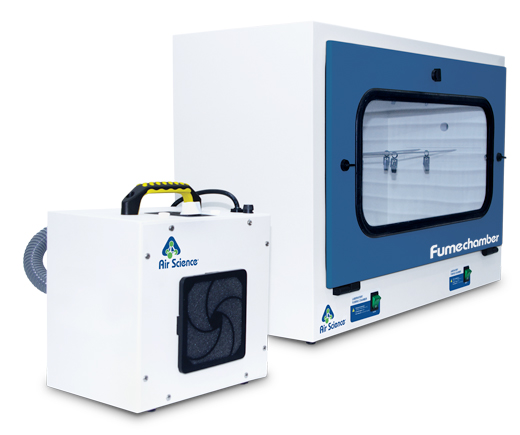

The fume extractor is a self-contained cyanoacrylate filtration system that connects directly to the Laboratory Fuming Chambers via the inlet port. The noxious odors and fumes inside the chamber are drawn through an activated carbon filter.

Get a Quote

Shop Select Models Online

Description

The Air Science Fuming Chamber uses cyanoacrylate fuming for latent print development on various surfaces. The fuming chamber incorporates the Air Science Fume Extraction unit coupled with a self-contained filtration system to safely purge the noxious fumes when the printing cycle is complete.

Model Specifications

DIMENSIONS & WEIGHTS

CONSTRUCTION

PROTECTION & COMPLIANCE

OPTIONS AND ACCESSORIES

WARRANTY

ELECTRICAL

Technical Info

External Dimensions

Internal Dimensions

Filter Options

Applications

External Dimensions

Model	Width	Depth	Height
BLC-EX-A	9.5" \| 241 mm	9.5" \| 241 mm	9.5" \| 241 mm
BLC-6.5-A	31" \| 787 mm	13" \| 330 mm	34" \| 864 mm
BLC-4-A	31" \| 787 mm	13" \| 330 mm	21" \| 533 mm

Internal Dimensions

Model	Width	Depth	Height
BLC-EX-A	-	-	-
BLC-6.5-A	30.5" \| 775 mm	12.5" \| 318 mm	31" \| 787 mm
BLC-4-A	30.5" \| 775 mm	12.5" \| 318 mm	17" \| 432 mm

Filter Options

Formula	Description
GP Plus!	The most widely used filter in the range, primarily for solvent, organic and alcohol removal.
HEPA/ULPA	Powders and particulates.

SEFA Chemical Compatability Order from Filtco

Applications

Using innovative filtration technology, the Fumechamber creates a safe work environment over the widest range of applications in the industry.

Compounding / Balance Enclosures, Microscopes and Robotic Equipment / Forensics / Histology / Educational / Microscopy / Mobile and Classroom Demonstrations / Pharmaceutical / Powder Fingerprinting / Powder Weighing / Sample Prep Work / Soldering / Solvent Cleaning and Welding / Veterinary / Dental

Model	Width	Depth	Height
BLC-EX-A	9.5" \| 241 mm	9.5" \| 241 mm	9.5" \| 241 mm
BLC-6.5-A	31" \| 787 mm	13" \| 330 mm	34" \| 864 mm
BLC-4-A	31" \| 787 mm	13" \| 330 mm	21" \| 533 mm
