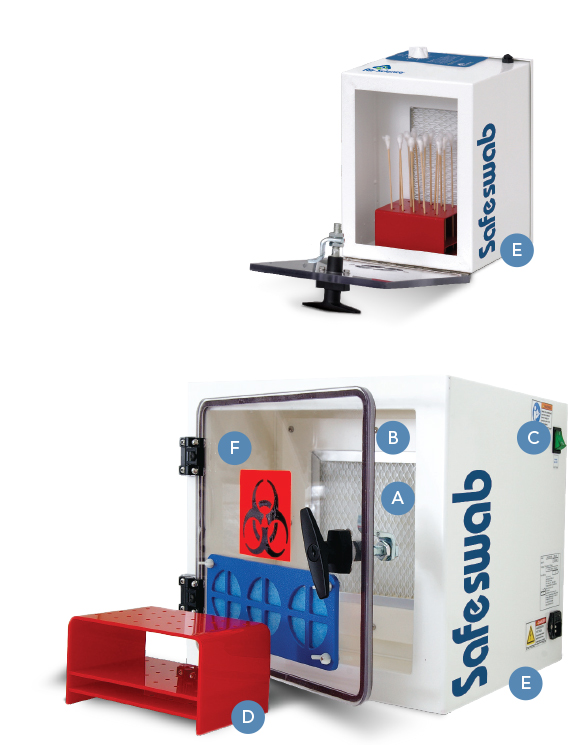

Safeswab Swab Drying Cabinets
- Horizontal airflow geometry.
- Effective protection to personnel from particulate hazards.
- Controlled airflow to dry items of evidence in the cabinet.
- Lockable doors for security.
- Safe and easy to change HEPA/ULPA filters.
Description
Model Specifications
Internal Height: 15.25″ | 387 mm
External Width: 16″ | 406 mm
External Depth: 20″ | 508 mm
External Height: 16″ | 406 mm
Shipping Width: 24″ | 610 mm
Shipping Depth: 24″ | 610 mm
Net Weight: 18 lbs | 8.2 kg
Shipping Weight: 25 lbs | 11.4 kg
Cabinet Style: Desktop
Construction: Epoxy-coated Steel
Environmental: ISO 14001 : 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Cabinet Lighting*: LIGHT-FDC
UV lamp: UV-FDC
Windowless Doors: SDOOR-FDC
* Factory installed; specify when ordering
Airflow: Horizontal
Main Filter: HEPA / ULPA
Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P
Control: Fan Manual On Off
Technical Info
| Model | Width | Depth | Height |
|---|---|---|---|
| FDC-001-A | 16" | 406 mm | 20" | 508 mm | 16" | 406 mm |
| FDC-001M-A | 7.5" | 191 mm | 8" | 204 mm | 9.5" | 242 mm |
| Model | Width | Depth | Height |
|---|---|---|---|
| FDC-001-A | - | - | 15.25" | 387 mm |
| FDC-001M-A | - | - | 15.25" | 387 mm |
| Formula | Description |
|---|---|
| HEPA/ULPA | Powders and particulates. |
Using innovative filtration technology, the Safeswab drying cabinet creates a safe work environment over the widest range of applications in the industry.
State and Federal Crime Laboratories \ Medical Examiners and Coroners \ Law Enforcement Agencies \ Hospital Emergency Rooms \ Drug Agencies
