Horizontal Laminar Flow Cabinets
- Purair Laminar Flow Hoods are available in vertical and horizontal configurations with various sizes and options for a total of 36 models to choose from in 6 different widths.
- Purair Laminar Flow Hoods are shipped fully assembled. No installation is required; just plug them in and use them.
- Products are designed for desktop use, or may be installed on an optional mobile base stand.
- The rear wall of vertical flow cabinets is perforated to reduce work surface turbulence by removing some of the airflow to the rear.
- High capacity air handling system delivers flow velocity of 0.4 m/s or 80 fpm.
- Choose from standard powder coated interior or stainless steel interior (-SS models).
- Purair VLF and HLF hoods have an ULPA filter pressure gauge to measure filter performance.
- The Air Science filters are easy to access, easy to change.
- Accessories include an IV bar, service fixtures, base stand, UV lamp, and front door/cover.
- Provides sterile work zone for aeseptic techniques.
- Air cleanliness meets and exceeds ISO Class 4.
- All models use ULPA filters (99.999% efficient at particle sizes between 0.1 and 0.3 microns.
- All models equipped with a stainless steel work surface.
Description
Model Specifications
Internal Height: 22.8″ | 579 mm
External Width: 25.25″ | 641 mm
External Depth: 29.5″ | 749 mm
External Height: 42.9″ | 1091 mm
Shipping Width: 40″ | 1016 mm
Shipping Depth: 44″ | 1118 mm
Net Weight: 170 lbs | 77 kg
Shipping Weight: 280 lbs | 127 kg
Cabinet Style: Standard
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001: 2015 ; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Base Stand, Mobile, Motorized: CART-HLF-BM-24
Base Stand, Mobile, with Casters: CART-HLF-BW-24
Base Stand, Mobile, with Leveling Feet: CART-HLF-BL-24
IV Bar and "S" Hooks: IV-HLF-24
Ionization Bar: ION-24
Removable Front Cover: FCOVER-HLF-24
Service Fixtures: SF-WALL
Static Dissipative Work Surface: TRAY-HLF-24-SDW
UV lamp with Night Door/Cover*: UV-24
* Factory installed; specify when ordering

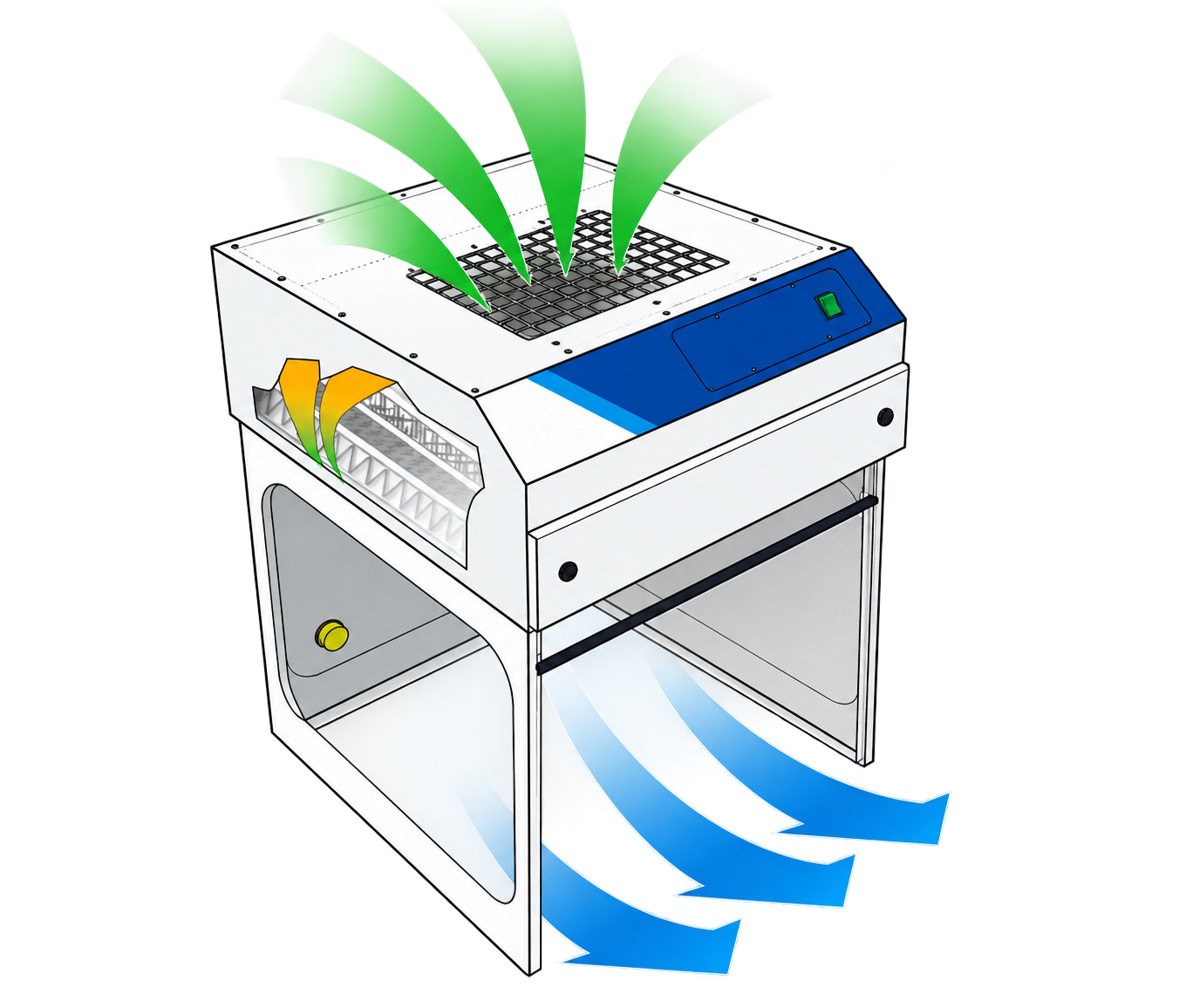

Airflow: Horizontal
Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P
Technical Info
| Model | Width | Depth | Height |
|---|---|---|---|
| HLF-24-A | 25.25" | 641 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
| HLF-24XT-A | 25.25" | 641 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
| HLF-36-A | 37.25" | 946 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
| HLF-36XT-A | 37.25" | 946 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
| HLF-48-A | 49.25" | 1251 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
| HLF-48XT-A | 49.25" | 1251 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
| HLF-60-A | 61.25" | 1556 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
| HLF-60XT-A | 61.25" | 1565 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
| HLF-72-A | 73.25" | 1861 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
| HLF-72XT-A | 73.25" | 1861 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
| HLF-96-A | 98.5" | 2502 mm | 29.5" | 749 mm | 42.9" | 1091 mm |
| HLF-96XT-A | 98.5" | 2502 mm | 29.5" | 749 mm | 49" | 1246.5 mm |
| Model | Width | Depth | Height |
|---|---|---|---|
| HLF-24-A | 24" | 610 mm | 23.75" | 603 mm | 22.8" | 579 mm |
| HLF-24XT-A | 24" | 610 mm | 23.75" | 603 mm | 28.9" | 734 mm |
| HLF-36-A | 36" | 914 mm | 23.75" | 603 mm | 22.8" | 579 mm |
| HLF-36XT-A | 36" | 914 mm | 23.75" | 603 mm | 28.9" | 734 mm |
| HLF-48-A | 48" | 1219 mm | 23.75" | 603 mm | 22.8" | 579 mm |
| HLF-48XT-A | 48" | 1219 mm | 23.75" | 603 mm | 28.9" | 734 mm |
| HLF-60-A | 60" | 1524 mm | 23.75" | 603 mm | 22.8" | 579 mm |
| HLF-60XT-A | 60" | 1524 mm | 23.75" | 603 mm | 28.9" | 734 mm |
| HLF-72-A | 72" | 1829 mm | 23.75" | 603 mm | 22.8" | 579 mm |
| HLF-72XT-A | 72" | 1829 mm | 23.75" | 603 mm | 28.9" | 734 mm |
| HLF-96-A | 96" | 2438 mm | 23.75" | 603 mm | 22.8" | 579 mm |
| HLF-96XT-A | 96" | 2438 mm | 23.75" | 603 mm | 28.9" | 734 mm |
Purair Laminar Flow cabinets are suitable for applications that generate no biohazardous materials and do not require operator protection.
Mycology and Food Microbiology \ Plant and Mammalian Cell Culture \ Clinical Pharmacy and Hospitals \ Cleanrooms \ Semiconductor Assembly \ Pharmaceutical \ Aerospace \ Medical Device Assembly \ Research Laboratories
