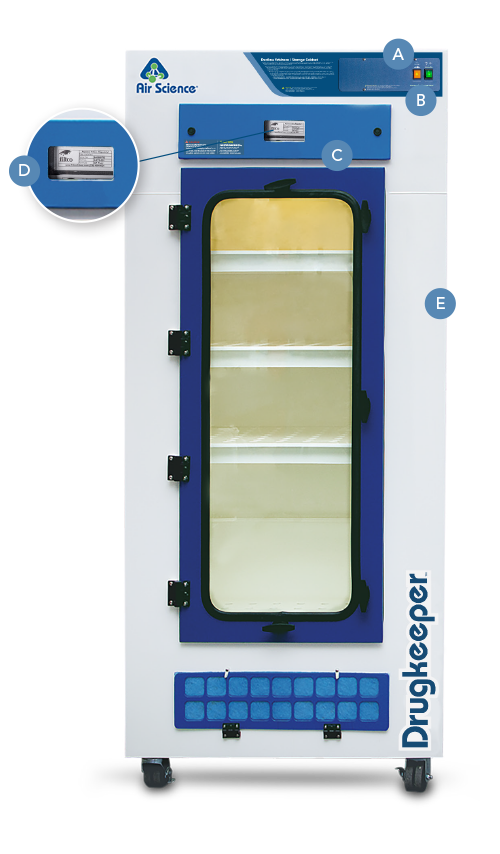

Drugkeeper Storage Cabinets
- The ductless Drugkeeper storage cabinet is self-contained and does not require venting to the outside. Many units are portable and may be moved with minimal downtime and without filter changes. Set-up, operation and filter maintenance are straightforward.
- Because filtered air is returned to the room, no demands are required of the facility HVAC capacity for make-up air.
Description
Model Specifications
Internal Height: 18.5″ | 470 mm
External Width: 34″ | 864 mm
External Depth: 20″ | 508 mm
External Height: 29″ | 737 mm
Shipping Width: 40″ | 1016 mm
Shipping Depth: 40″ | 1016 mm
Net Weight: 115 lbs | 51 kg
Shipping Weight: 170 lbs | 80 kg
Construction: Epoxy-coated Steel
OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. This product may assist you with compliance or as part of your chemical hygiene plan. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental: ISO 14001 : 2015; ENERGY STAR® Partner
Quality: ISO 9001 : 2015
Cabinet Lighting*: LIGHT-FDC
FSA Control Panel*: FSA
FSA/Autocal Control Panel*: ADV-P
HEPA Filter (Safestore 64T requires 2 filters): ASTS-030
UV lamp: UV-FDC
Wheels*: WHEEL-FDC
* Factory installed; specify when ordering
Airflow Direction: Upflow
Main Filter: HEPA / ULPA
Electrical Voltage: 120V, 60Hz
NEMA Plug: 5-15P
Control: Fan Manual On Off
Technical Info
| Model | Width | Depth | Height |
|---|---|---|---|
| 34S-A | 34" | 864 mm | 20" | 508 mm | 29" | 737 mm |
| 34T-A | 34" | 864 mm | 24" | 610 mm | 79" | 2007 mm |
| 64T-A | 64" | 1626 mm | 24" | 610 mm | 79" | 2007 mm |
| Model | Width | Depth | Height |
|---|---|---|---|
| 34S-A | - | - | 18.5" | 470 mm |
| 34T-A | - | - | 49" | 1245 mm |
| 64T-A | - | - | 49" | 1245 mm |
| Formula | Description |
|---|---|
| GP Plus! | The most widely used filter in the range, primarily for solvent, organic and alcohol removal. |
| ACI Plus!/SUL | Designed to neutralize volatile inorganic acid vapors. |
| ACR | Iodine and methyl iodide vapors; It is frequently used for iodination reactions with lower level radioactive iodine. |
| ACM | Mercury vapor |
| AMM | Removes vapors from dilute ammonia solutions and to remove low molecular weight amines. |
| FOR | Designed to oxidize formaldehyde and glutaraldehyde fumes; It is widely used in hospital pathology laboratories. |
| HEPA/ULPA | Powders and particulates. |
Drugkeeper special purpose storage cabinets offer an economical solution for safe storage of confiscated hazardous chemicals and illegal drugs. Cabinet airflow and face velocity protect users from incidental exposures while electronic airflow monitoring assures continuous safety. Activated carbon main filters are formulated for general purpose storage; optional HEPA filters eliminate exposure to biological particulates. Air Science ductless technology combined with innovative filtration technology creates a safe work environment over a wide range of applications.
State and Federal Crime Laboratories \ Medical Examiners and Coroners \ Forensics \ Law Enforcement Agencies \ Hospital Emergency Rooms \ Drug Agencies
